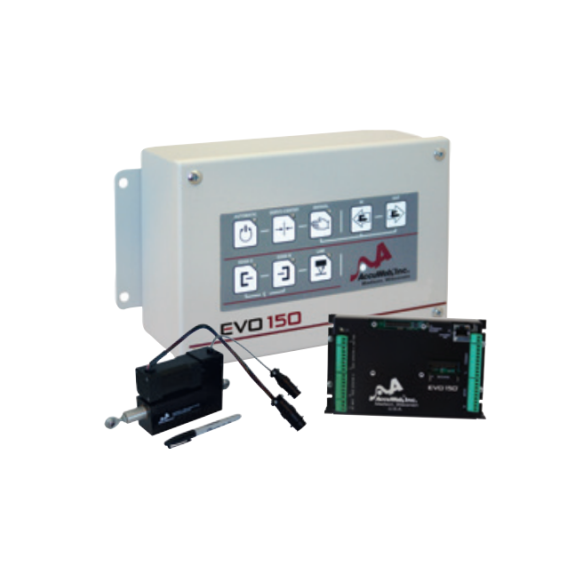

EVO 150 - Controller

A COMPACT 24V DC WEB GUIDE CONTROLLER FOR BRUSHED AND BRUSHLESS ACTUATORS.

The EVO 150 offers both versatililty and reliability in a remarkably small package. It integrates easily with industry standard networks and is compatible with all AccuWeb dynamically compensated WideArray™ and PointSource™ edge detectors that automatically calibrates the web guide system for environmental changes and process contamination.

Send a Request

  • 24V DC Operation — Integrates easily into existing lines or control panels.

    150 Watts of Power — Enough power to control all web guiding actuators.

    Advanced Brushed or Brushless Drive – works with existing actuators and maintenance-free brushless motors.

    Network Friendly     — EtherNet/IP, PROFINET I/O, and discrete I/O communication protocols allow easy interface with PLC networks.

    Web Accessible     — Integrated web connection via standard EtherNet cabling allows convenient uploading and downloading of guide settings and performance data.


    Applications — Designed for web applications up to 40" wide.

    DualEdge™ Guiding — Capable of centerline guiding webs up to 18" wide using a single WideArray™ edge detector.

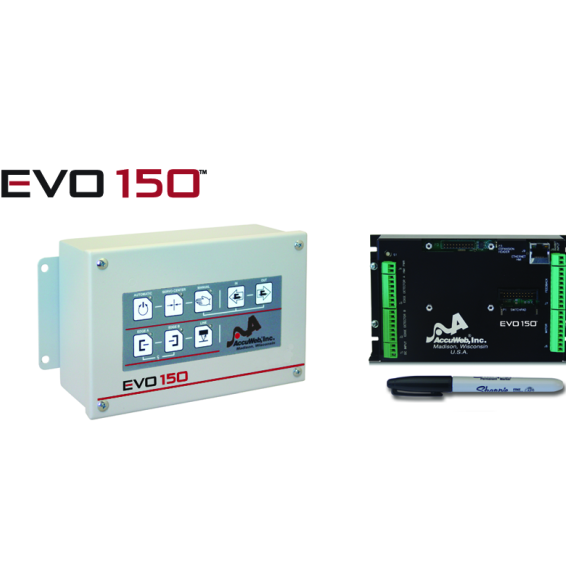

    Four Configurations — The EVO 150 control module is available for DIN rail mounting or in steel enclosure with optional switchpad or touch screen HMI.

    Ratings — Enclosures are rated IP65 for protection from harsh environments, and designed to UL, EUL, CUL and CE codes. Reference UL certificates at www.ul.com.
